H BEAM

H Beam is a type of steel with an H-shaped structure, with the characteristics of high balance, so the ability to withstand pressure perfectly. The use of H beam is often used to make house construction structures, beams, roof or column frames, machinery,
Advantages
Enduring with time
High quality
Bearing good
Cost saving
Eco-friendly materials
Policy
Construction warranty
Precision machining
Safe transport
Share

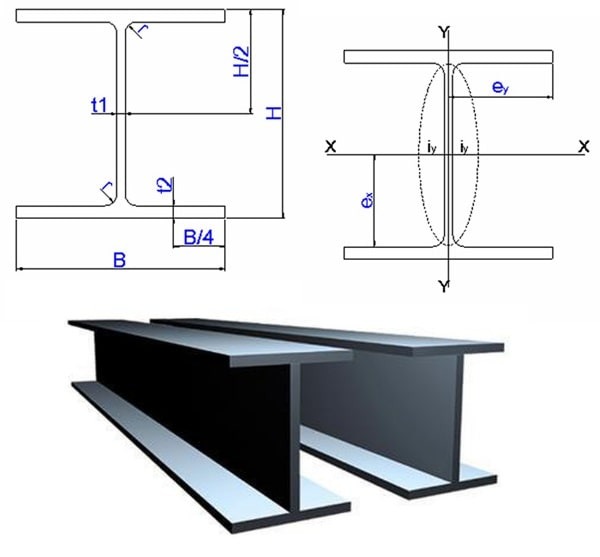

Section
Specifications

PRODUCT'S NAME Specifications ( mm ) Length (M/Cây) Mass
(KG/M)
Edge size
(X*Ymm )
Wed Thickness T1

Flange Thickness

 T2

H BEAM
H BEAM 100 H100x100 6 8 6m 17.2
H BEAM 125 H125x125 6.5 9 6m - 12m 23.6
H BEAM 150 H150x150 7 10 6m - 12m 31.5
H BEAM 175 H175x175 7.5 11 6m - 12m 40.4
H BEAM 200 H200x200 8 12 6m - 12m 49.9
H BEAM 250 H250x250 9 14 6m - 12m 72.4
H BEAM 300 H300x300 10 15 6m - 12m 94
H BEAM 350 H350x350 12 19 6m - 12m 137
H BEAM 400 H400x400 12 19 6m - 12m 172
Other products
U-SHAPED STEEL
U-SHAPED STEEL is a structural steel with cross-sectional characteristics resembling a C or U shape, with a straight back called the body and two extensions called the upper and lower wings.
V-SHAPED STEEL
V-SHAPED STEEL, also known as angle steel with a V-shaped cross-section. Steel is divided into 2 main types: normal angle steel and hot-dip galvanized angle steel.
I BEAM
I Beam is a type of steel shaped like the capital letter I in the alphabet. The structure of this steel consists of 2 parts, the horizontal part (wing part) and the belly connection part (connecting the 2 wings). In which, the wings are short and of equal
